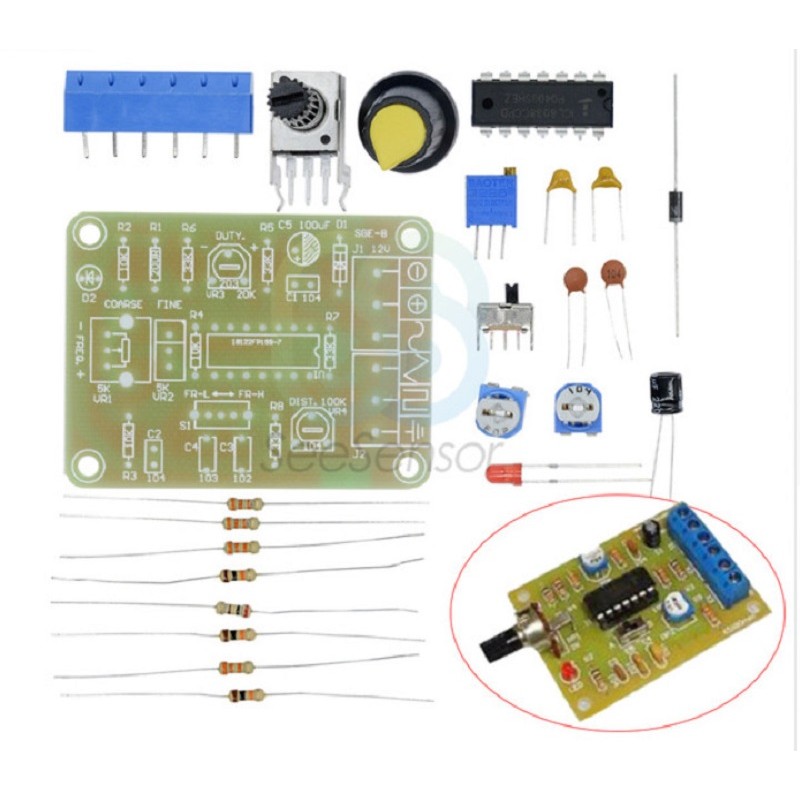

KIT GENERATORE DI FORME D'ONDA ICL8038

Generatore di forme d’onda in kit basato sul chip ICL8038. È in grado di generare segnali di uscita ad onda sinusoidale, triangolare e quadra. Dispone di LED di stato, interruttore per selezionare la banda di frequenza, regolazione del Duty cycle, regolazione della distorsione per onda sinusoidale, regolazione per la frequenza, morsetti a vite per uscita onda quadra, sinusoidale, triangolare e alimentazione. Alimentazione: 12 VDC, range di frequenza: da 50 Hz a 5 kHz.

Feature:

With excellent performance ASIC chip function generator ICL8038, add a small amount of resistive and capacitive components, can produce sine, triangle and square wave, and the frequency of the signal, duty cycle, adjustable distortion sine wave.

Notice:

Requires a certain DIY ability, you need to soldering the kit yourself : )

Description:

ICL8038 pin functions:

Pin 1, Pin 12: sine waveform adjusting terminal;

Pin 2: sine wave output;

Pin 3 : triangle wave output;

Pin 4 , Pin 5 : the frequency and duty cycle (or waveform asymmetry) adjustment;

Pin 6 : V +, the positive power supply;

Pin 7 : Frequency Offset;

Pin 8 : Frequency adjustment input terminal;

Pin 9 : square wave output. This is an open collector output terminal, work should take a load resistor to the corresponding positive power supply terminal from the pin, to get a TTL-compatible square-wave output, the load resistance must be connected to + 5V power supply;

Pin 10 : timing capacitor terminal;

Pin 11 : V-, negative power supply terminal or the ground. When Use positive and negative power supply, Pin 11 to the negative supply, the output waveform are symmetrical with respect to 0 V; When use a single positive power supply, Pin 11 grounded, the output waveform is unipolar, uniform voltage is + VCC / 2;

Pin 13 and Pin 14 : Empty Pin.

The kit is designed for a frequency range is 50-5KHz, two bands with using a switch S to switch, RP1 is the frequency adjustment, RP2 is the duty cycle adjustment, RP3 is a sine wave distortion adjustment. Circuit uses 12V single power supply, input from the X1; X2, X3 is a waveform output side, you can use oscilloscope to observe three output waveforms.

Model: ICL8038

Input: 12V DC

Frequency range: 50-5KHz,

Size: 6cm*4.5cm*0.2cm

ATTENZIONE: IL PRODOTTO SI INTENDE IN SCATOLA DI MONTAGGIO.
