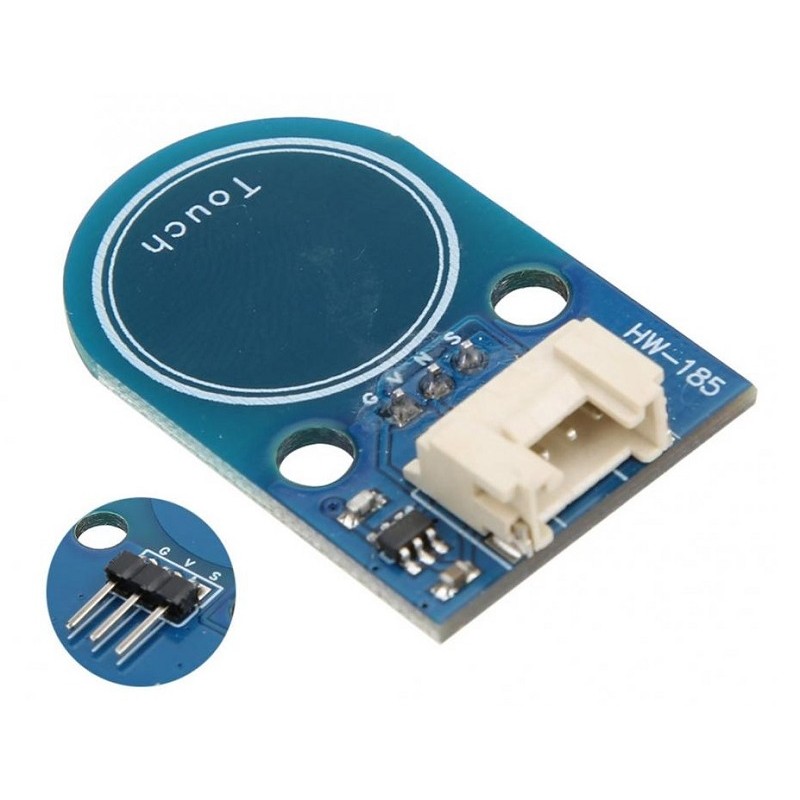

MODULO SENSORE TOUCH INTERRUTTORE CAPACITIVO DOPPIA FACCIA 3-4 PIN

1. The touch button switch is the same size as the finger, compact size and easy to use.

2. It can be connected to the I/O port of the motherboard, easy to operate.

3. It compatibles for 2.54mm 3-pin interface and 4-pin interface.

4. It can be disconnected from the outside to check the switch state to control the on/off of the appliance.

5. When there is no operation, digital output is VDD, when the button is pressed down, the digital output is 0V.

Specification:

Condition: 100% Brand New

Item Type: Sensor Module

Size: Approx. 38 x 24 x 1.6 mm / 1.5 x 0.9 x 0.1 in

Working Voltage: 3.3-5VDC

Compatible Interfaces: 2.54mm 3-pin interface and 4-pin interface

Pin Description:

S represents for voltage digital output port

N represents for not used pin

V and G represent for voltage at the common collector and ground respectively

Electrical Characteristics Minimum Valve Typical Value Maximum Value Unit

Supply Voltage 2 3 5.5 VDC

Working Current (VCC = 5V) - 18 - uA

Digital Output Voltage (VCC = 5V) 0 - 5 V
